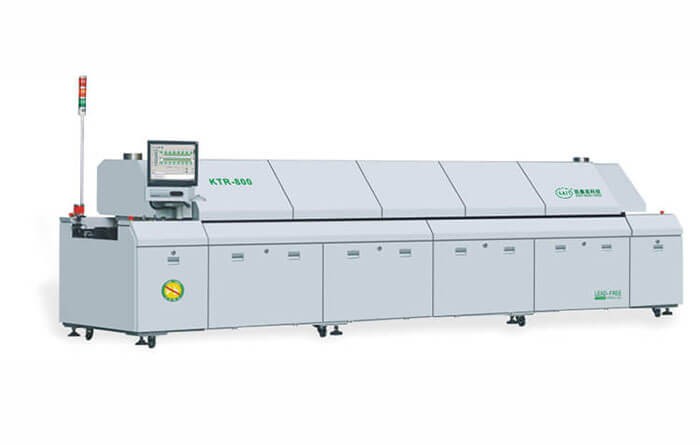

8 zones SMT Reflow Oven KTR 800
1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.
2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.
3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.
4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.
5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.
6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.
8 zones SMT Reflow Oven
Heating zones qty.
Top 8, bottom 8
Cooling zones qty.
Top 3, bottom 3
Heating zone length
Thick copper plate
3P 380V/220V 50/60HZ
Temp. control range
Temp. control accuracy
Temp. control method
PID +SSR drive+ PLC
PCB temperature deviation
3 Inverters adjust
All profiles can be saved
Warm up time
High, low temp. alarm
2 sectional rails
Rail fixed method
Stainless steel, stuck-free type
PCB Max. width
Mesh+ chain+ rail
Left to right
Forced air cooling
Top 8,bottom 8（3110mm）can meet the need of the peak lead-free technique.
After cool down by forced air, PCB temp. is ≤70℃ at the exit.
Warm up time
From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence
Warm up from two side, save the power and time
Profile transfer time
Heating zone temp. control accuracy
PCB temp. deviation
Empty to full load heat balance respond time
