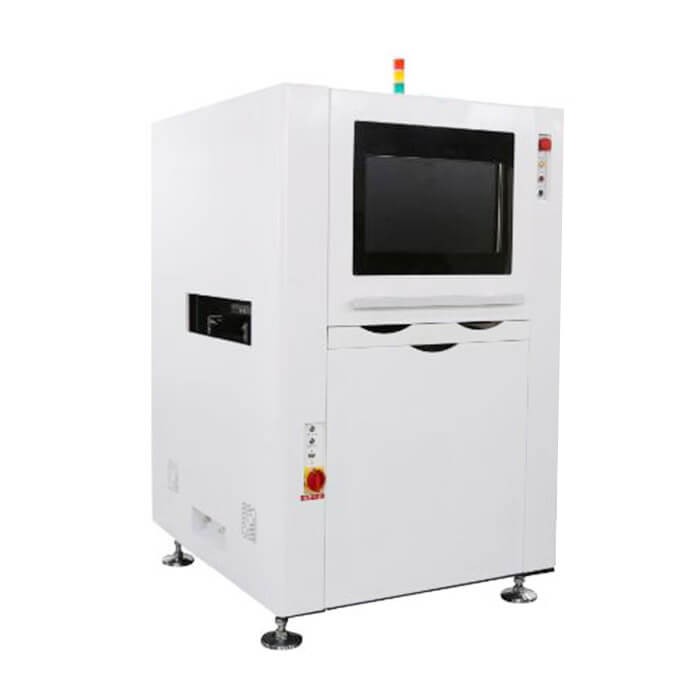

DIP Inline AOI Inspection Machine D520

Max PCB 450mm x 420mm
Small Component 0201/01005
Dimension 1080* 1100« 1600mm
Weight 700KG

DIP Inline AOI Inspection Machine D520

Specifications:



Model

DIP In-Line AOI CTW-D520


Power Supply

AC220V± 10%50/60HZ 1KW


Dimension

1080* 1100« 1600mm

Base Spec

Weight

700KG


Light Source

RGB+W LED RGB Ring Light Source


image Recognition

Outline recognize color and gray analysis


!B*KK(Camera) Camera Unit

High grade Imported digital color CCD camera 2M pixels/5M pixels


 Resolution for X-Y axis

 15/20um optional

Mage

 Resolution for Z axis

w35mm

recognition

Max. warpage

2% or <5mm


Inspection window size

FOV 30 x 20mm


Small Component

0201/01005


Min PCB

50mm x 50mm


Max PCB

450mm x 420mm


PCB Thickness

6mm


Max Weight

3KG


PCB Holding Edge

3.5mm

Spec

Working height

920 ± 20mm


Conveyor Speed

750mm/S(MAX)


Conveyor Control

Manual/Automatic


Operation System

Windows10 Windows7


User Interface

Chinese/English


industrial PC<CPU)

17CPU 17CPU


Hard disk drive

500G §00GB


DRAMAS DRAM

4GB Memory


Monitor

21.5 inch color monitor

Software

Inspection Items

Solder paste missing, shifting, lack, too much,open, short,

Comstone, missing, shifting, skewing, thumb up, side up, turn over, wrong, damage, reversing, soak solder, glue squeeze out

Spec


Soldering: More or less soldering.Cold solder. Open, Short,Contamination.


NG Indication

OK/NG marking,PCB ID.PCBA Status.Part Status and Failure picture.Defective location.


Programming

Support General parts library and CAD data input


Analysis Output

Auto create SPC and date


Support Off-line Programming

CAD CAD Input

Special Feature

For precise defective marking
