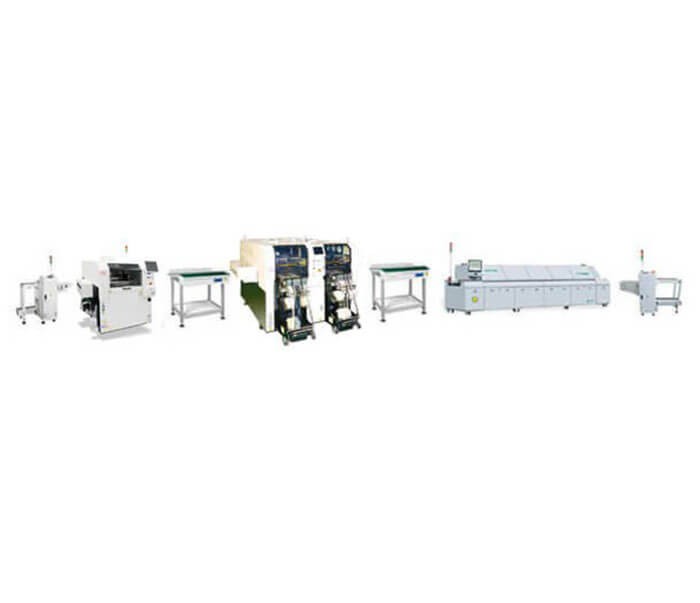

Panasonic NPM-DX PCB Assembly line

PCB size: Max. 510 × 590 MM
Panasonic NPM-DX PCB Assembly line
Panasonic Assembly Line
Panasonic Production Line

Panasonic NPM-DX PCB Assembly line

Specifications:


Panasonic DX PCB Assembly line, with 1 Panasonic high speed pick and place machine NPM-DX, can reach 92400 CPH.

1. PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

2. Panasonic stencil printer SPG2

Supporting high accuracy/density printing

Attack angle variable squeegee (option)

Top/side clamper (movable type) (option)

New operation panel

Enhancing automation and labor-saving functions

Paper-less cleaning (option)

Holed pot type automatic solder supply (option)

Support pin automatic exchange (option)

M2M Line solution

According to the correction data of shifted printing positions analyzed by solder paste inspection (APC correction data), it corrects printing positions(X ,Y ,θ).

*3D inspection equipment of other companies can also be connected.

*Please inquire with your sales representative for more details.

3. Panasonic NPM DX Pick and Place Machine

In total, the NPM-DX reduces downtimes and increase the line throughput.
With 92 400 cph and a feeder capacity for up to 136 reels, the NPM-DX is the ideal solution to meet the expectation of an evolving electronics assembly industry.
The NPM-DX can process PCB sizes of up to 510 x 590 mm and place large connectors (up to 150 x 25mm) and other components (up to 120 x 90mm).
This and other features make the NPM-DX the best solution for high volume-mix manufacturing.

92 400 cph and feeding with up to 136 reels
Ready for line automatization
Available APC system
Automatic recovery options
Remote operation option
Lowest total cost of ownership (TCO) with maintenance services
Advanced feeder setup and component supply navigation
Integrated floor management

4. PCB conveyor

1 Modular design, optional assembly as per client’s requirement.

2 Rugged steel design, improves equipment stability .

3 Smooth stainless steel screw to adjust the width of the rail.

4 Variable speed control.

5 Circuit board testing mode.

6 Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.

7 Heavier bottom design, not easily shift.

8 Machine length can be customized.

9 Compatible with SMEMA interface.

5. 12 Zones SMT Reflow Oven

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.
