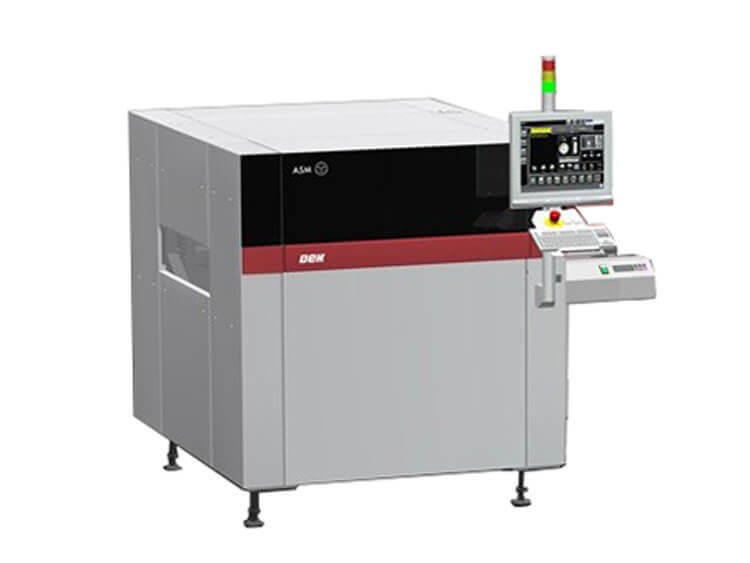

DEK Stencil Printer E Seriels

core cycle time: 8 seconds
Substrate size: 620 mm (X) x 508.5 mm (Y)
System alignment capability: > 2.0 Cmk @ ± 25 μm
Substrate thickness: 0.2 mm to 6 mm

DEK Stencil Printer E Seriels




DEK’s experienced printing specialists have developed an innovative platform for E by DEK with high-quality components, sophisticated construction, and modular design that guarantees a stable and reliable printing process even for the latest fine-pitch applications.


The E by DEK delivers E-Performance with:

8 seconds core cycle time

Fast setup changeovers

High repeatability


 DEK Stencil Printer E Seriels


> 2.0 Cmk @ ± 12.5 μm (± 6 sigma)

System alignment capability

> 2.0 Cmk @ ± 25 μm (± 6 sigma)

Optimum core cycle time

8 seconds

Substrate size

50 mm (X) x 40.5 mm (Y) to 620 mm (X) x 508.5 mm (Y)

Operating System

Windows 7 Embedded

Squeegee pressure mechanism

Software-controlled, motorized with closed loop feedback

Stencil positioning

Semi-auto stencil load with drip tray

Understencil cleaning

Interchangeable understencil cleaner (IUSC), fully programmable with wet/dry/vacuum wipe

Adjustable-width stencil mount (AWSM)

Frame variants - fully adjustable to accommodate frame sizes in the range of 381 mm to 736 mm

Substrate thickness

0.2 mm to 6 mm

Substrate weight (maximum)

6 kg

Substrate warpage

Up to 7 mm including substrate thickness

Substrate fixture

Over the top clamp

Edge clamp

Foil-less clamp


Temperature & humidity sensor

Monitoring of the process environment
