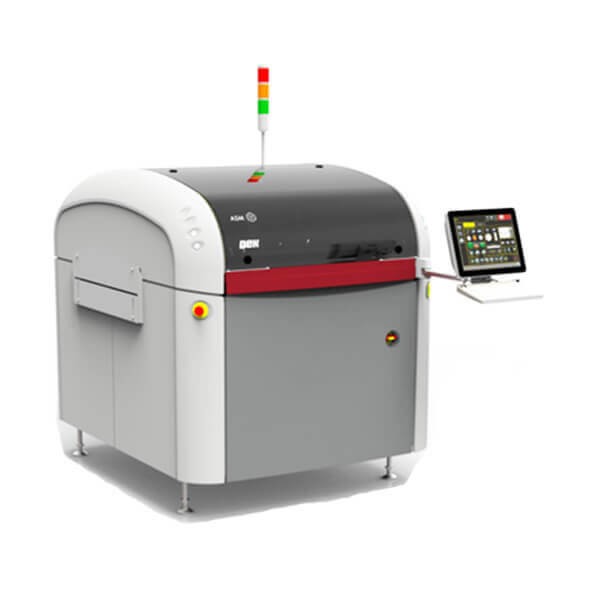

DEK Stencil Printer Horizon 8
DEK’s Horizon platforms offer a comprehensive array of sophisticated features as standard, including optimised printer frame technology, fast product changeover, 2 Cpk print process capability and 6-sigma production performance. The DEK HawkEye 750 camera system, semi-automatic stencil load and the understencil cleaning system features a core cycle time of 12.0 seconds and a machine accuracy of ±25 µm @ 2 Cmk for use in high-mix environments. The 12-second core cycle timeDEK camera Instinctiv T V9 user interface ISCAN™ Intelligent Scalable Control Area Network .
DEK Stencil Printer Horizon 8
Machine alignment capability
>2.0 Cpk @ +/- 12.5µm, (±6 Sigma) *
Process Alignment Capability
>2.0 Cpk @ +/- 25µm, (±6 Sigma) *
Standard cycle time
10 seconds + process
Maximum printing surface
508 mm (X) × 508 mm (Y)
Touchscreen, keyboard and trackball, DEK Instinctiv V9 software
DEK HawkEye 1700 digital camera with 2-way LED illumination
Motorized with squeegee pressure feedback
Automatic, incl. squeegee drip catcher
Motorized (actuators); aligned on X- and Y-axis and rotation
DEK Cyclone 300 mm/400 mm/515 mm
Printed documents: User manual, installation instructions, circuit diagrams.
Technical instructions and videos that explain all operating steps are preinstalled.
Compressed air supply
5-8 bar at ~5 litres/minute
100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz
Approx. 690 kg depending on selected options
* The machine and repeat accuracy check will be conducted using production-typical process variables. The repeat accuracy rating comprises the printing speed, squeegee operation, table movements and camera movements.
