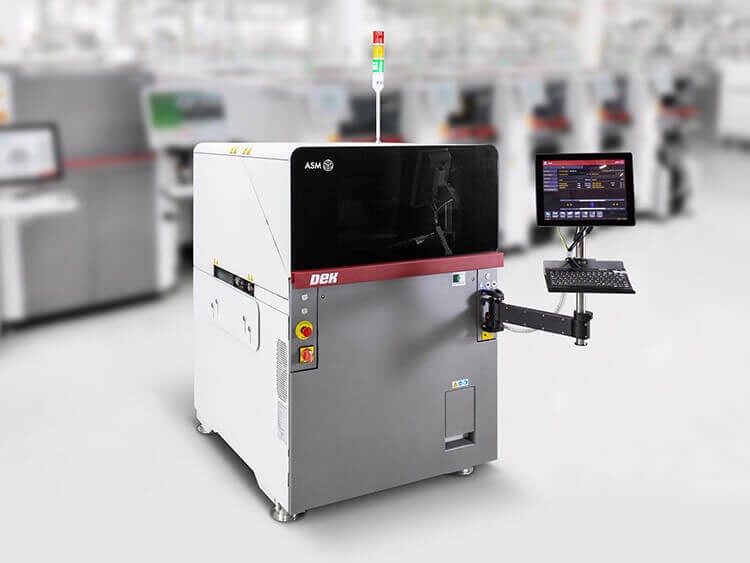

DEK Stencil Printer TQ

Max PCB: 400x400 mm
Core cycle time:5 secs
Wet print capability > 2,0 Cpk @ ±17,5 μm
Demision:1300mm×1000mm×1600mm

DEK Stencil Printer TQ

Specifications:


These innovations give you competitive advantages:
Maximum throughput
Core cycle time: 5 seconds
Maximum precision and printing quality
Best solder paste printing for the latest generation of extra-small components like 0201 metric
System alignment capability up to ± 12.5 µm @ 2 Cmk
Wet print accuracy up to ±17.5 µm @ 2 Cpk (measured and certified by the external AVS system before delivery of each DEK TQ)
Fast and flexible 3-stage transport
Fully flexible 3-stage transport system with innovative clamping and off-belt printing for fast, precise and stable print process
Up to 8 hours without assist
New USC with extra-large fabric roll and cleaning fluid supply, new printhead with new paste management system
Open, easy to integrate
IPC-Hermes-9852, closed-loop to SPI, ASM OIB, IPC CFX
Efficient programming
Fully new intuitive software and offline ASM Printer Programming
Best floorspace performance
Only 1.3 square meter footprint
Back-to-back setup
The perfect solution for dual-lane lines

Machine type

 DEK Stencil Printer TQ

Standard configuration

Specifications

Machine alignment capability

> 2,0 Cmk @ ±12,5 μm, (±6 sigma)

Wet print capability

> 2,0 Cpk @ ±17,5 μm, (±6 sigma)

Core cycle time

5 secs

Maximum print area

400 mm (X) × 400 mm (Y) (single-stage mode)

Machine control

NuMotion control System

Camera positioning

Linear motors and high-precision encoders

Squeegee pressure mechanism

Software-controlled, motorised with closed-loop feedback

Stencil positioning

Automatic loading incorporating squeegee drip tray

Substrate size (min.)

50 mm (X) × 40,5 mm (Y)

Substrate size (max.)

250 mm (X) × 400 mm (Y) (3-stage mode)

400 mm (X) × 400 mm (Y) (single-stage mode)

400 mm (X) × 400 mm (Y) (3-stage with optional transport extensions)

Approximate dimensions

1,300 mm (L) × 1,000 mm (W) × 1,600 mm (H)
