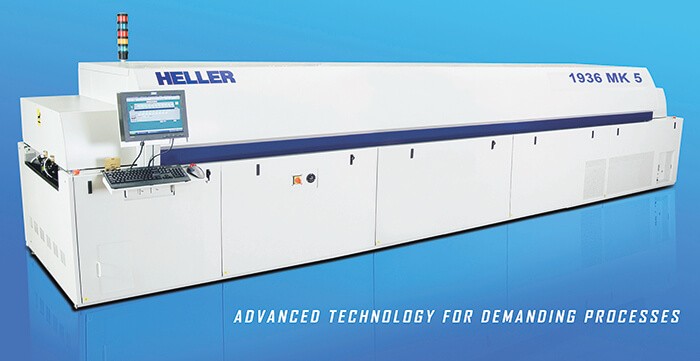

Heller Reflow Oven MK5 series

Dimension: 5900*1520*1600mm
cooling zone: 3 zone
Heating zone: Top 10 and Botton 10
Max PCB width: 560MM

Heller Reflow Oven MK5 series

Specifications:


This reflow Oven machine’s new heating and cooling advances deliver up to a 40% reduction in nitrogen and electrical consumption! This makes our convection reflow oven machines not only the premier reflow soldering machine system but the best overall reflow oven value in the industry!

Advancements like the invention of the first waterless / filterless flux separation system earned Heller the prestigious Frost & Sullivan Award for Innovation in reflow oven soldering. But more importantly, this development extended preventative maintenance intervals from weeks to months for our systems. Additional breakthroughs in energy management have helped customers remain environmentally responsible while still maintaining their sustainability guidelines.

Heller Reflow Oven Mark5 Series Specifications

MK5 Models

Overall Length

# of Heating Zones / Heated Length

# of Cooling Zones

1913 MK5 SMT Reflow Soldering Oven


590 cm (232″)

13 Top 13 Bottom

3 Top (std) Bottom Cool / External Cool optional

1810 MK5 SMT Reflow Soldering Oven


465 cm (183″)

10 top & 10 bottom

2 Top (std) Bottom Cool /External Cool optional

1809 MK5 SMT Reflow Soldering Oven


465 cm (183″)

9 Top 9 Bottom

2 Top (std) Bottom Cool /External Cool optional

1707 MK5 SMT Reflow Soldering Oven


360 cm (142″)

7 Top 7 Bottom

1 Top (std.)
External Cool optional

1505 MK5 SMT Reflow Soldering Oven


200 cm (79″)

5 TOP 5 BOTTOM

1 Top (std.)
External Cool optional

1826 Mark5 SMT Reflow Soldering Oven


465 cm (183″)

8 Top 8 Bottom /
260 cm (102″)

2 Top (std) Bottom Cool /
External Cool optional

2043 MK5 SMT Reflow Soldering Oven


668 cm (263″)

13 Top 13 Bottom /
430 cm (170″)

3 Top (std) Bottom Cool /
External Cool optional
