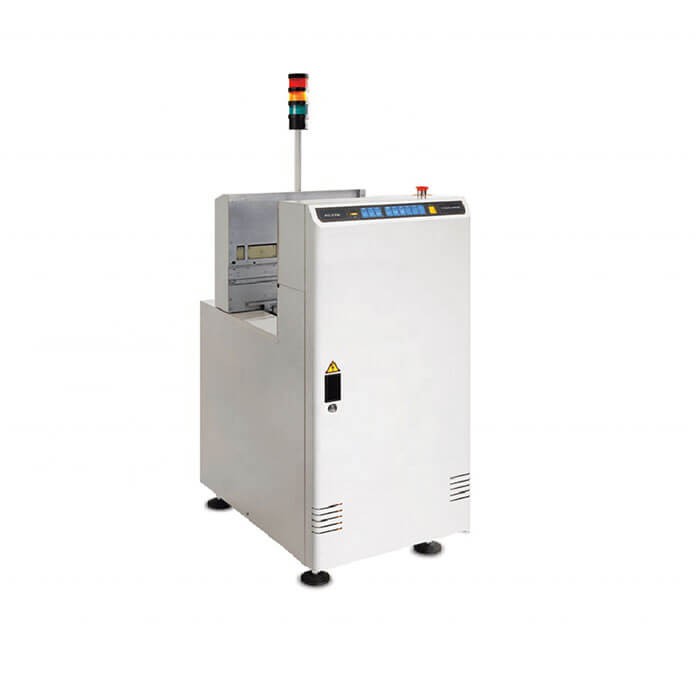

PCB Destacker Loader

Dimension: 503*889*1200mm
PCB Capacity: 400pcs(0.6mm Thick PCB)
Fully Automatic PCB Destacker Loader
PCB Size(mm): 460*460

PCB Destacker Loader

Specifications:


1.Strong,firm and stable design.

2.soft touch' LED control panel or touch screen can be selected.

3.Aluminum structure, Bottom weight design, not easy to shift..

4.By pass mode provide.

5.increased load without interference.

6.Smooth and precise translation (stepper motor).

7.Minimize clearance between conveyor.

8.Compatible SMEMA interface.

Model

 PCB Destacker Loader

Model NO.

FS-460

FD-460

Dimension(mm)

503*889*1200

503*889*1200

PCB Size(mm)

50*50-460*460

50*50-460*460

Rack Thickness(mm)

0.6mm Min

PCB Capacity

400pcs(0.6mm Thick PCB)

Cycle Time

Approx.10Seonds or Specify

Control System

PLC

Power

Max 100 VA

Air Supply

4-6bar, 10ltr/Min Max

Transport Height

900±20mm(or Customer Specified)

PCB Direction

L to R or R to L

Communication

SMEMA for Both In & Out

Power Supply

1 PH AC 220V 50/60Hz (Option:110V to 380V)

Weight

200KG

220KG

Keywords:

SMT reflow oven machineSMT wave soldering machineSMT AOI machineSMT SPI machineSMT peripheral machinePanasonic pick and palce machinePanasonic InserterPanasonic PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare partsPanasonic AI Spare parts.

We provide Panasonic SMT assembly line solutions, including Panasonic Assembly Line Equipments Panasonic productsPanasonic Pick and Place Machine MachinePanasonic Insertion machinePanasonic SMT Stencil PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare PartsPanasonic AI Spare Parts;  any kind through hole Insertion equipments you may need, please contact us for more information: wechat whatsapp:+8613538047679, Email: Andy@fomyn.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/ skype/ phone/ wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
