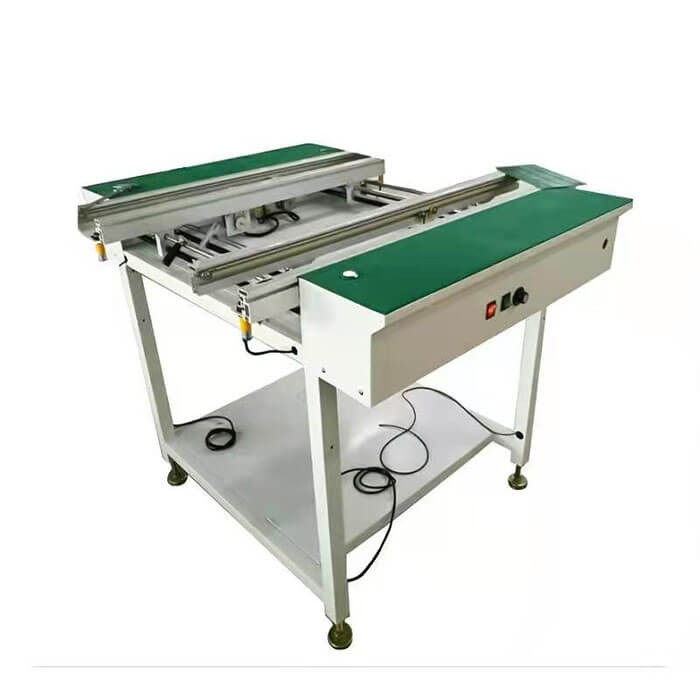

PCB Dual Lane Conveyor

PCB Direction: L- R or R- L
PCB Width: 50 to 310 mm
Power Supply: 1 PH AC 220V 50/60Hz
Usage: SMT Assembly Line

PCB Dual Lane Conveyor

Specifications:


Feature:

1. The precision screw rod is adjusted in width and narrow to ensure that the transportation rails are parallel to each other;

2. Using professional wear-resistant and anti-static flat belts, special thick aluminum profile guide rails, to ensure smooth connection of guide rails and stable transportation;

3. The standard is equipped with a signal line, which can be connected to the transmission board online with other equipment

4. The conveyor with different lane lengths can be made according to customer requirements

5. Equipped with anti-static rubber to better prevent static electricity;

6. The transmission motor adopts an adjustable 4248 lengthened stepping motor,

7. The flat belt transmission wheel is driven by double bearings, which is stable in transmission and does not damage the belt.

8. Adjusting the width adopts double sets of screw rods,

9. Dual lane independent control, easy to operate,

Model

PCB Dual Lane Conveyor

Model No.

BC-300D

Outer Dimension

1000*1150*900mm

PCB Width

50~310mm(50-600MM)

PCB Direction

L to R or R to L

Speed

0-2000 mm/min

Motor

1P AC220V 50/60HZ 15W

Power Supply

1P AC220V 50/60HZ

Rail length

up to your request

Control System

PLC

Foot switch

standard

Lighting

Option

SOP Rack

Option

Platform material

ESD Rubber Mat

Communication plug

SMEMA Signal plug for up & down line

Weight

Approx.100kg
