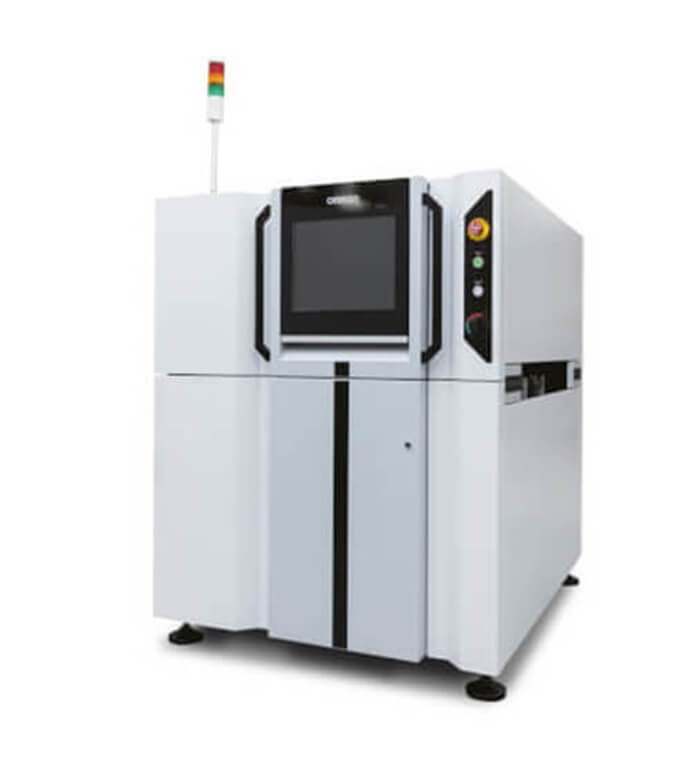

Omron 3D AOI VT-S1080

FOV 50.0x37.5mm
max PCB: 510x680mm
Weight Approx. 1250 kg
dimensions: 1180x1450x1500mm

Omron 3D AOI VT-S1080

Specifications:


Features
s1080 features tab images misc

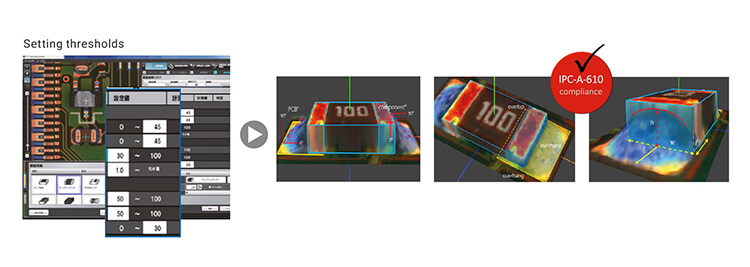

AI-assisted qualitative inspection conforming to international standards
Since values conforming to the standards are directly applied as inspection criteria, there is no dependency on the skill and expertise of the programmer.

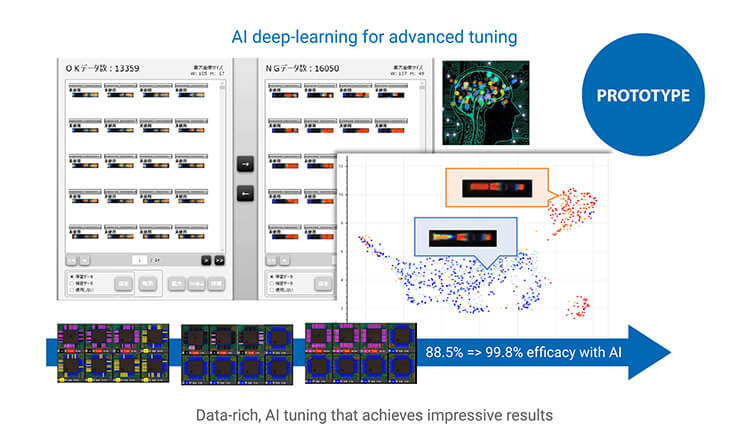

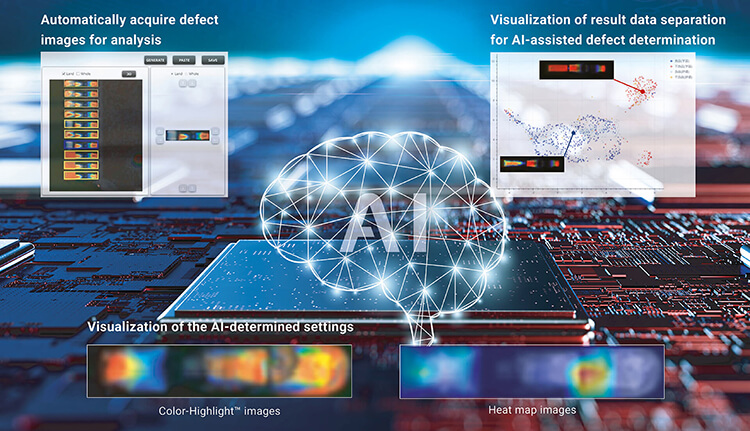

AI technology to minimize programming and visual inspection efforts
1. AI self-optimization

2. Automatically acquire defect images for analysis and visualization of result data separation for AI-assisted defect determination

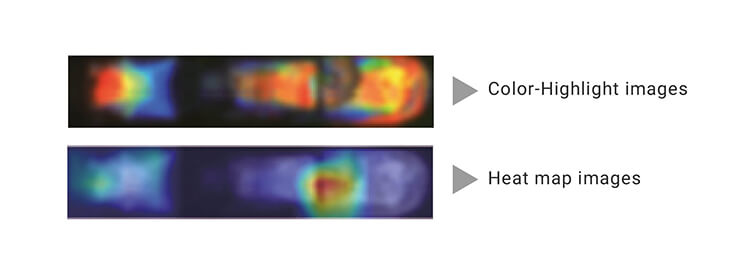

3. Visualization of the AI-determined settings

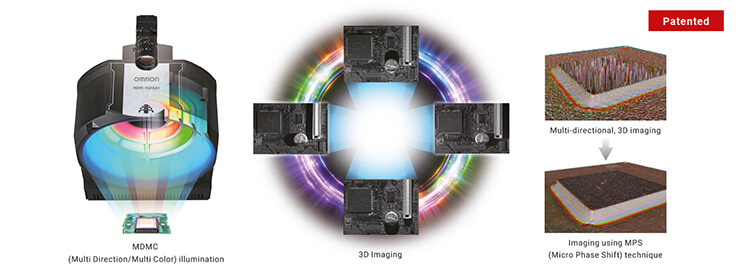

High-precision solder shape reconstruction
Equipped with our unique MDMC (Multi Direction/Multi Color) illumination and new MPS (Micro Phase Patented Shift) moiré technique. This enables higher robust and reliable inspection performance.

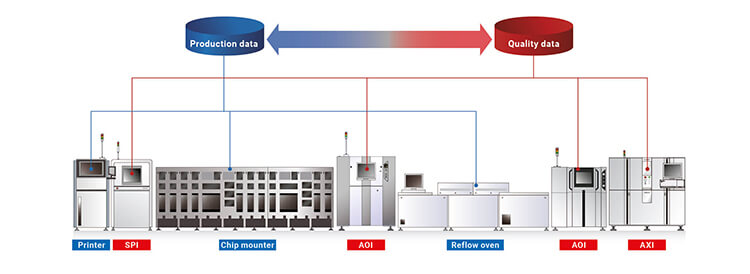

M2M*1 system focusing on quality
1. Preventing defects by:
monitoring and reporting fluctuations in the measured values during production
visualizing defect trends associated with chip mounter hardware such as heads and nozzles
2. Visualizing the quality by:
process comparison
displaying production status
linking SPI/AOI/AXI systems
3. Improving the first pass yield rate of the line by automatically calculating post-print/post-placement inspection criteria based on the    inspection results after the solder reflow process

*1. Abbreviation of machine-to-machine. It is a mechanism to optimize the quality and equipment operation status without human intervention, made possible by enabling autonomous communication and exchange of information between various connected, production equipment.

Model

 Omron 3D AOI VT-S1080

Outer dimensions

1180(W) x 1450(D) x 1500(H)mm

Weight

Approx. 1250 kg

Power supply

Voltage

200 to 240 V AC (Single phase); Voltage fluctuation range ±10%

Rated power

2.0 kVA (Maximum current 10 A)

Line height

900±20mm

Air supply

Not required

Operating temperature range



10 to 35°C

Operating humidity range

 35 to 80% RH (Non-condensing)

Vision system

Imaging system

12M pixel camera

Inspection principle

MDMC*1 illumination + 3D reconstruction through MPS*2 technology

Image resolution

12.5µm

FOV

50.0 x 37.5mm

Supported PCB size

50(W) x 50(D)~510(W) x 680(D)mm

Weight

(Max) 4 kg

Thickness

0.4~4mm



Clearance

Above the conveyor belt: 54 mm or less; Below the conveyor belt: 50 mm or less

(Including board thickness/curvature/bend/part tolerance, etc.)

Height measurement range



25mm

Inspection item

Component height, lift, tilt, missing or wrong component, wrong polarity, flipped component, OCR inspection,  2D code, component  offset  (X/Y/rotation),  fillet (height/length, end joint width, wetting angle, side joint length), exposed land, foreign material, land error, lead offset, lead posture, lead presence, solder ball, solder bridge, distance between components, component angle
