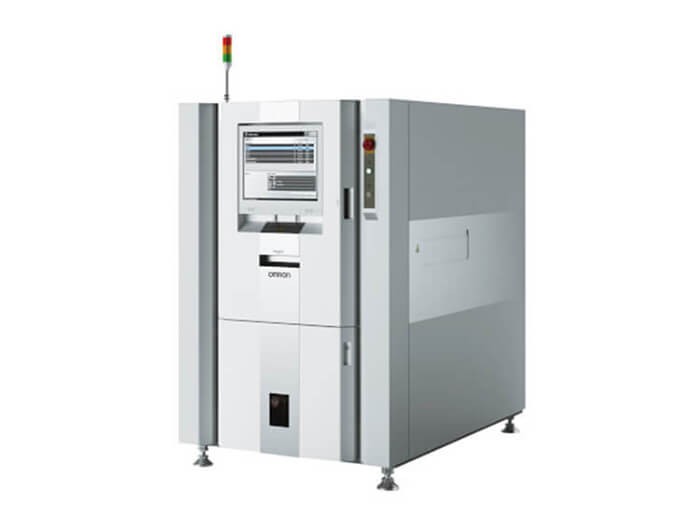

Omron 3D AOI VT-S730

FOV 30.00×30.72mm
max PCB:510(W)×460(D) mm
Weight Approx. 800kg
Dimensions 1100(W)×1470(D)×1500(H) mm

Omron 3D AOI VT-S730

Specifications:


Features
features vt-s730 aoi
Top View 4Mpixel/12Mpixel Camera with Telecentric Lens.
4x Oblique-Angle Inspection Cameras
Latest 3D Programmable DLP Projectors (25mm max Height Inspection).
Omron’s Unique Color-Highlight Illumination Technology.
Real 3D Image Technology for Component and High-Quality Solder Joint Inspection.
Real-time Interactive 3D data feedback to the Programmer.
View and edit samples of all parts on the board simultaneously (in real-time) without interrupting Production.
Process histograms are created automatically for all inspection tests and components
AI self-optimization tools can perform automated inspection logic and criteria changes.
Real defect images can be stored in a Central library and used to improve the tuning process.
Full 3D Data Processing and realization of Industrial 4.0 Smart Factory Solution.
Industrial 4.0 connectivity with The Hermes Standard for Full M2M Connectivity.
Omron Q-upNavi: Combine SPI, AOI and AXI Inspection Result Data for True Root-Cause Process Analysis for Process Improvement.
Omron Q-upAuto: Advanced Manufacturing Analysis Combining Q-upNavi ‘Inspection Result Data’, with ‘Manufacturing Process Data’ for High Level Process Improvement.
VT-730 is the latest 3D-AOI technology on the market, providing the Highest-Quality Solution for tomorrows production environments.

Model

 Omron 3D AOI

Model No.

VT-S730

VT-S730-H

Dimensions

1100(W)×1470(D)×1500(H) mm

Weight

Approx. 800kg

Power supply

Voltage

200 - 240VAC (single phase), voltage fluctuation range ±10%

Normal rated power

2.8kVA

2.4kVA

Line height

900±20mm

Air supply pressure

0.3 - 0.6MPa

Operating temperature range

10 - 35°C

Operating humidity range

35 - 80%RH (Non-condensing)

Image signal input block

Imaging system

4M pixel camera

12M pixel camera

Inspection principle

3D reconstruction through color highlight and phase shift technology

Image resolution

15μm

FOV

30.00×30.72mm

61.44×46.08mm

Supported PCB size

50(W)×50(D) - 510(W)×460(D) mm

Thickness

0.4 - 4mm

Clearance

Above: 40mm; Below: 40mm

Height measurement range

25mm

Inspection item

Component height, lift, tilt, missing/wrong component, wrong polarity, flipped component, OCR inspection, 2D code, component offset (X/Y/rotation), fillet (height/length, end  joint width, wetting angle, side joint length), exposed land, foreign material, land error, lead  offset, lead posture, lead presence, solder ball, solder bridge
