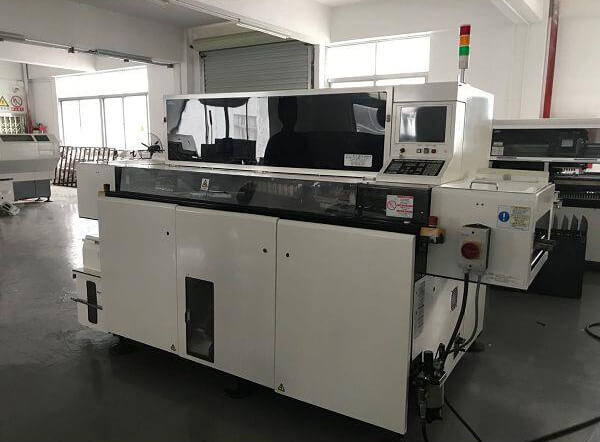

Panasonic AI Radial Inserter RHS2B

PCB dimensions:L508mm x W381mm
Max. speed: 0.17s/component
Dimensions: W3000mm x D2280mm x H1560mm
Mass: 2300kg

Panasonic AI Radial Inserter RHS2B

Specifications:



● High−Speed Radial Lead Component Insertion Machine RHS2B (NM−RA20A)

● Find the used auto insertion machine from China, TRS will be a very good supplier of you.

● We have Panasonic radial insertion machines like: RL132, RL131, RG131, RHS2B, RHSG, RH6...

● Panasonic axial insertion machine like: AV131, AVK3, AVK2B, AVK2...

● RHS2B is a high-speed radial lead component insertion machine with the lead chuck system providing not only high-speed insertion at 0.17 s/component but also energy savings and noise reduction.

Product Parameter(Specification)

PCB dimensions: L50mm x W50 mm to L508mm x W381mm

Max. speed: 0.17s/component

No. of component inputs: 80

Applicable components: Pitch 2.5/5.0mm,7.5mm and 10mm(option)

Electric source: 3-phase AC200V,3.5kVA

Pneumatic source: 0.5MPa, 80L/min(A.N.R)

Dimensions: W3000mm x D2280mm x H1560mm

Mass: 2300kg

Keywords:

Panasonic inserter NPM-VFPanasonic AI Radial inserter RHS2BPanasonic Vertical inserter RH5Panasonic inserter RG131Panasonic pick and palce machinePanasonic InserterPanasonic PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare partsPanasonic AI Spare parts.

We provide Panasonic SMT assembly line solutions, including Panasonic Assembly Line Equipments Panasonic productsPanasonic Pick and Place Machine MachinePanasonic Insertion machinePanasonic SMT Stencil PrinterPanasonic Assembly LineSMT EquipmentPanasonic FeederPanasonic NozzlePanasonic Spare PartsPanasonic AI Spare Parts;  any kind through hole Insertion equipments you may need, please contact us for more information: Tommy wechat whatsapp: +8613691605420, Email: sales@flason.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/ skype/ phone/ wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
