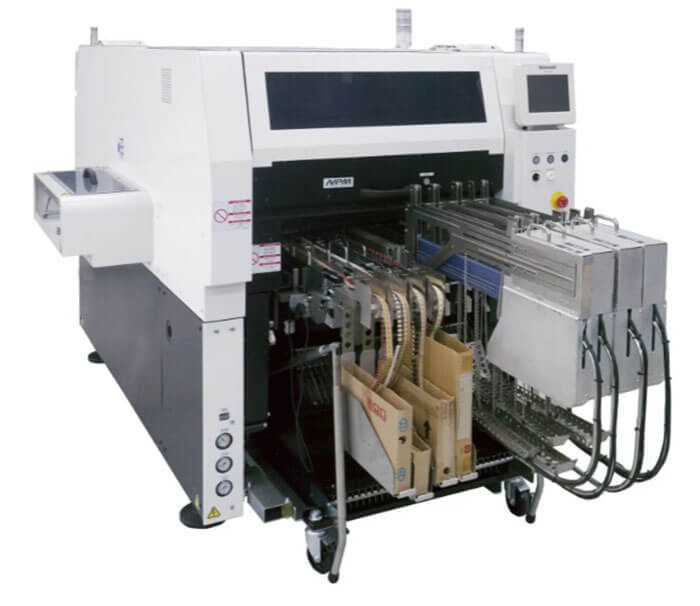

Panasonic inserter NPM-VF

PCB dimensions (mm): MAX. L 510 x W 460MM
Insertion direction: 360º (± 180º )*1 degree unit
PCB thickness : 0.3 ~ 8 mm
PCB Exchange time: 4.5 s

Panasonic inserter NPM-VF

Specifications:


The NPM-VF is equipped with a double portal. The SMD and THT components are placed by one placement head per portal. A wide variety of vacuum pipettes and grippers are available. The pick and place machine can be used in single or dual lane mode.

The NPM-VF reaches a speed of up to 4,500cph and can process component sizes from 5x5mm up to 130x35mm and 60mm height.

Active cutting and clinching tools are integrated which detach THT components from the radial and axial feeders. Clinching directions as well as pin lengths per THT component can be defined via the assembly program.

Beside the radial and axial feeders, the NPM-VF can be equipped with all common standard feeder systems for SMD components.

The flexible NPM-VF is an ideal machine for cycle-optimized production, especially for companies that must process both types of components due to the increased demand from power electronics for THT assemblies.

This efficient pick and place machine contributes to reduce manpower requirements and to consistent production with high productivity, flexibility and high-quality pick and place results.

Model IDPanasonic inserter NPM-VF

Standard conveyorAnvil conveyor (Option)
PCB dimensions (mm)L 50 x W 50 ~ L 510 x W 460L 50 x W 50 ~ L 460 x W 400
Max. PCB mass *1Up to 3kg
PCB thickness0.3 ~ 8 mm
PCB flowLeft ← Right / Left → Right (Flow direction is selectable)
Insertion direction360º (± 180º )*1 degree unit
Insertion push forceUp to 100 N
PCB Exchange time4.5 s5.5 s
Clinch specifications-

Clinch angle : 60 degrees outward clinch

Clinch pitch : 2.5 to 40 mm

Lead bend angle : 10 ~ 40º Lead diameter :

φ 0.4 mm ~ φ 1.0 mm (soft copper)

φ 0.4 mm ~ φ 0.8 mm (hard copper / CP wire)

Applicable components

Max. dimensions : L 130 mm × W 35 mm × H 60 mm •

L 150 mm × W 38 mm × H 29 mm

Max. component mass : 200g

Electric source3-phase AC 200, 220, 380, 400, 420, 480 V, 2.7 kVA
Pneumatic source0.5 ~ 0.8 MPa, 200 L /min (A.N.R.)
Dimensions (mm)

W 1 866 x D 2 332 x H 1 554 (Main body only)

W 2 166 x D 2 332 x H 1 554 (When downstream extension conveyor is connected)

Note: Excluding the monitor, signal tower and ceiling fan cover.

Mass2 590 kg (Only for main body : This differs depending on the option configuration)
