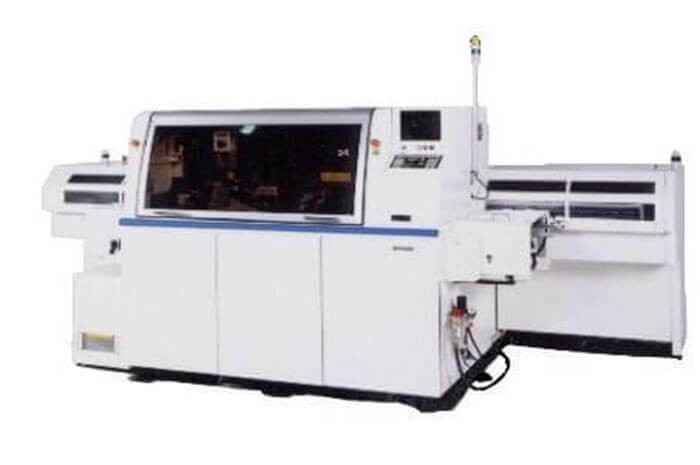

Panasonic inserter JVK3

PCB Exchange time: 0.08S
Conveyor time: 2S
Panasonic JVK3
ROT: 0 = 0°, 1 = 90°

Panasonic inserter JVK3

Specifications:


Panasonic inserter JVK3 parameter

Parameter

Input range / Standard Setting

Details

STEP No.

1 to 5000

STEP No. 1 to 5000 ID numbers used to distinguish steps of the NC program.

X(ABS)          Y(ABS)

X: -9999.99 to 9999.99 (mm)                          Y: -9999.99 to 9999.99 (mm)

ABS: Part insertion position based on the PCB origin (X-Y coordinatesorigin).

Z No.

Fixed at 121.


ROT

0 = 0°, 1 = 90°

Angle of part when inserted on PCB.

INSERT WIDTH

0 to 999.99 (mm)

Pitch data of parts to be inserted

Standard setting is 5 to 31 mm.

TACT

Not used

Not used for JVK3.

NO INS

0 = Insertion

1 = No insertion

Codes that designate whether part insertion is executed or not.

S&R

0 = Normal (No repeat)

1 = Step repeat / No rotation

2 = Pattern repeat / No rotation

11 = Step repeat / 90° rotation

12 = Pattern repeat / 90° rotation

21 = Step repeat / 180° rotation

22 = Pattern repeat / 180° rotation

31 = Step repeat / 270° rotation

32 = Pattern repeat / 270° rotation

Codes that designate step repeat or pattern repeat and rotation insertion angle.

SKIP STEP

0 to 9

Designates step to be skipped.

RECOG

0 = Without hole recognition

1 = With hole recognition

Codes that designate whether or not to correct the given hole position (correct the step)

BAD MARK

0 = Without bad mark recognition

1 = With bad mark recognition

Codes that designate whether bad mark detection is executed with the bad mark detection sensor.

FIX

Not used

Not used for JVK3.

COMMENT

Within 8 alphanumeric characters

Any user-set comment for the insertion position (step). (Can be omitted.)

Program offset

X: -999.99 to 999.99 (mm)

Y: -999.99 to 999.99 (mm)

The difference between the coordinate origin on the PCB and mechanical origin of the machine.
